We sell Graco Paint Sprayers including the popular Magnum x5 and x7, Ultra Pro series, and more. Graco paint sprayers range in design; some are suited for handy homeowners while others are designed for heavy commercial use. This is a product guide to help you determine which Graco paint sprayer is right for you. If you are ready to buy, head to our webstore.

TO WEBSTORE

The first thing you might be wondering is, "How do I use an airless paint sprayer?" These units are equipped with two main hoses. One hose is placed in the bucket or can of paint to siphon the paint into the machine. The operator of the machine uses a much longer hose, equipped with a nozzle and tip, to spray the paint in a gentle, consistent fan onto the surface. There are multiple tip sizes to accomodate everything from thin interior paints to heavy sealers (depending on the unit - some are better suited for spraying coatings.) These units are electric and function without an air compressor. There are other options available, such as standing or mobile, low or high. Now, let's look at the available models.



The Graco Magnum x5 paint sprayer is our most popular model, high quality enough for small commercial businesses but still economical enough for do-it-yourselfers. The Magnum x5 is a high performance machine that will get the job done cleanly and quickly. The Graco Magnum x7 paint sprayer is similar to the x5 with a few notable upgrades. It supports larger tip sizes so it can spray coatings as well as paint, and it boasts a convenient cart design for easy mobility.

Next up, let's look at our commercial Graco paint sprayers. These have a higher price tag due to the top-of-the-line construction that provides a long life even with daily use. We sell the Graco Ultra 395, which is reliable for commercial applications of coatings and paint alike with an Easy Out pump filter to reduce clogs and pressure control to ensure a consistent finish. The Graco Ultra Max II 595 has an upgraded pressure control system with an advanced microprocessor control to give Graco's most consistent spray fan available and zero deadband and low pressure. The Graco Ultra Max II 695 is in the Graco Pro Contractor series and includes everything from the previous Ultra models with the addition of a quick reel, an LED display, a pump protection system to stop pump damage from the paint running out, a faster cleaning system, and an onboard toolbox to keep all of your tips in one place. Check out our products below!

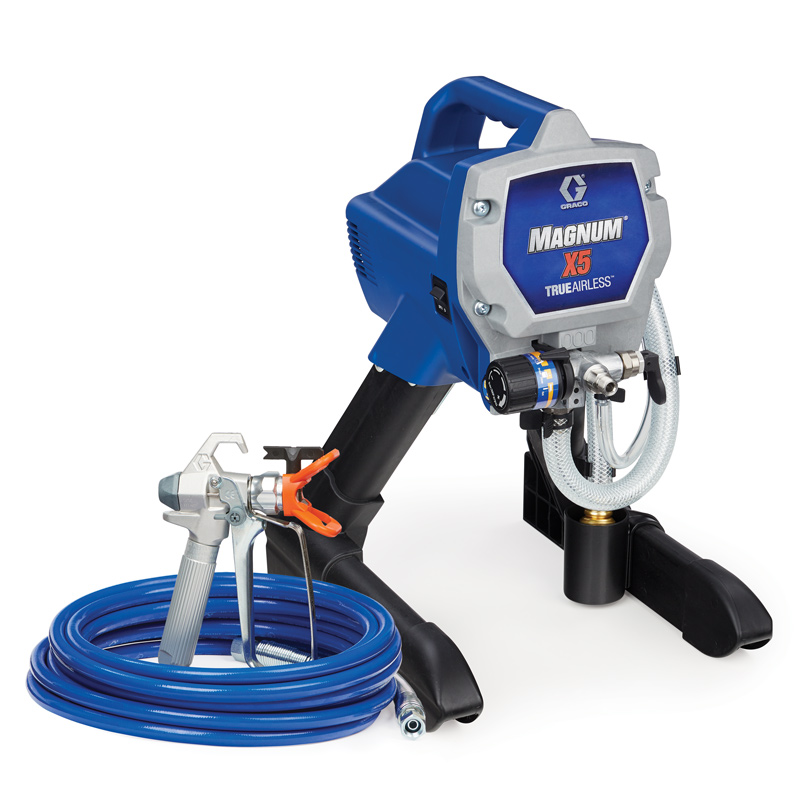

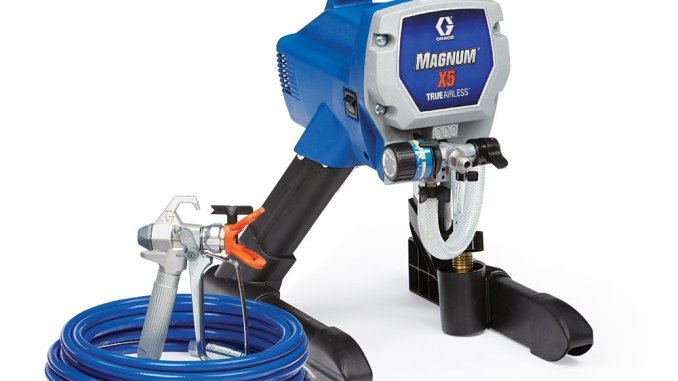

Graco Paint Sprayer | Magnum X5

Graco Paint Sprayer | Magnum x5

DIY homeowners and handymen get cost-efficient, high-speed performance with the Magnum X5. These sprayers are ideal for painting all interior projects, decks, siding, fences and small houses. Choose the X5 when you paint on a quarterly basis. Equipped with long lasting, stainless steel piston pumps, these sprayers let you spray more projects each year.

Stainless Steel Piston Pump - Delivers high pressure power to spray unthinned paints
Flexible Suction Tube - Spray directly from 1 or 5 gallon paint containers
Reverse-A-Clean Spray Tip - Quickly clears tip clogs
Power Flush - Connects to garden hose for fast cleanup
Durable Frame - Compact, lightweight and easy to carry
Adjustable Pressure - Easy control of paint flow
PushPrime - Fast and reliable start-up every time

Model Number: 262800
Recommended Usage: 125 gal/yr
Maximum Tip Size: .015 in
Maximum Pressure: 3000 psi
Performance Rating: .27 gal/min
Maximum Hose Length: 75 ft
Motor: 1/2 hp Universal
Length: 14.5 in
Width: 12.4 in
Height: 17.9 in
Weight: 13.3 lbs

VIEW IN OUR STORE

Graco Paint Sprayer | Magnum X7

Graco Paint Sprayer | Magnum x5

Graco Magnum x7

DIY homeowners and handymen are equipped to save time and money with the Magnum X7. Tackle any interior project, exterior houses, fences and decks. The X7 supports a larger tip size than the X5, making it an excellent choice for spraying heavier coatings. The convenient cart makes exterior painting easier allowing you to roll the paint and sprayer around the job.

• Stainless Steel Piston Pump - Delivers high pressure power to spray unthinned paints
• Flexible Suction Tube - Spray directly from 1 or 5 gallon containers for small or large projects
• Convenient Cart - Easily move sprayer around on the job
• Paint Saver Pail Hook - Effortlessly move 5 gallon paint container with cart
• Reverse-A-Clean Spray Tip - High precision spray tip reverses to quickly clean material clogs
• Power Flush Adapter - Connects to a garden hose for fast and easy cleaning
• PushPrime - Fast and reliable start-up every time
• Adjustable Pressure Control - Easy control of paint flow

Model Number: 262805
Recommended Usage*: 125 gal/yr
Maximum Tip Size: .017 in
Maximum Pressure: 3000 psi
Performance Rating: .31 gal/min
Maximum Hose Length: 100 ft
Motor: 5/8 hp Universal
Length: 19.3 in
Width: 15.3 in
Height, Upright: 37.0 in
Height, Folded: 29.2 in
Weight: 23.3 lbs

VIEW IN OUR STORE

Graco Paint Sprayer | 390 Airless

Graco Paint Sprayer | Magnum x5

The GRACO 390 AIRLESS PAINT SPRAYER. Stand-up sprayer! New-In-Box!
Small Sprayer. Big Results. Graco presents a sprayer designed to provide consistent results in a compact package. Comes complete with: Contractor™ FTx™ II Gun, RAC® X 515 tip and guard, 1/4 in x 50 ft (6.4 mm x 15.2 m) Blue Max™ 3300 psi (227 bar) hose.

Key Applications:
• Interior/Exterior Residential
• New Construction
• Repaint/Remodel
• Light Commercial
• Property Maintenance

Key Materials:
• Latex
• Lacquers
• Stains
• Enamels
• Acrylics

Features and Benefits:
• Lightest Weight - Only 40 pounds!
• Proven Gear Drive with Lifetime Lubrication.
• Exceptional Life from the Patented Endurance Pump.
• .020" Max Tip Size, 3300 Max Pressure and .43 GPM Delivery.
• Ships Complete with Contractor FTx II Gun, RAC X 515 Tip and Guard, Blue Max Hose.

390 - Strong Perfomance in a Compact Sprayer.

• Lightest Weight Available in the Class.
• Comfort-grip Molded Handle for Easy Transport.
• User Controls Located Together for Easier Use.
• Simple to Clean.
• All Metal Swiveling Inlet Suction Hose with No-Tools Access.

Download Brochure (.pdf)

VIEW IN OUR STORE

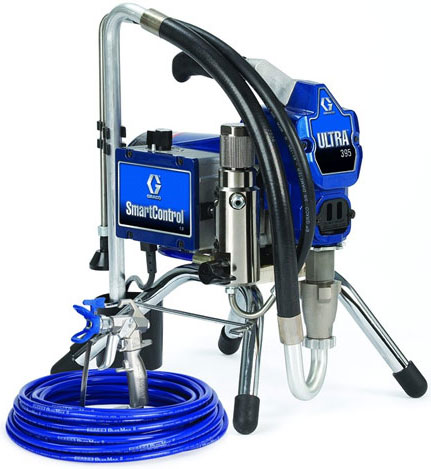

Graco Paint Sprayer | Ultra 395 Electric Airless

Graco Paint Sprayer | Ultra 395 Electric Airless

Comes complete with: Contractor™ II Gun, RAC® X 517 tip and guard, 1/4 in x 50 ft (6.4 mm x 15.2 m) Blue Max™ 3300 psi (227 bar) hose.

Proven Endurance™ Pump
• Reliable Performance.
• Long-life V-Max Packings, Chromex Rod and Hardened Stainless Steel Cylinder.
• Patented Graco Design Used on All Professional Sprayers.
• Hammer Access Inlet Valve.

SmartControl™
• Electronic Pressure Control Delivers Most Consistent Spray Fan at All Pressures!

Easy-Out™, Full Flow Pump Filter
• Filtering Reduces Tip Clogs and Improves Finish.
• Easy-Out Filter Comes Out With Cap for Less Mess.
• Flushes Quickly.
• All Metal Swiveling Connection.
• No-Tools Access.
• Easy to Reach the Bucket.
• Heavy-Duty Prime Line is Flexible and Solvent Resistant.
• Stainless Steel Inlet and Prime Tubes are Designed for Long Life & Easy Reach.

TEFC DC Motor
• Totally Enclosed Design Protects Motor from Dirt and Dust – Prolonging Motor Life.
• Run Longer Extension Cords.
• Runs Quietly.

Heavy Duty Cart
• 11/4" Welded Steel.
• Chrome Plated.
• Welded Steel Cord Wrap.
• Offset Handle with Comfort Grip.

Dependable Drive Train
• Max Tip Size: .021"
• Max GPM (LPM): 0.45 (1.7)
• Max PSI: 3300 (227)

Key Applications: Interior/Exterior Residential, New Construction, Repaint/Remodel, Light Commercial, Property Maintenance

Download Brochure (.pdf)

Key Materials: Lacquers, Stains, Enamels, Latex, Acrylic
• Lifetime Lubricated Gears.
• Swivel Inlet Hose

Model: GRA395
Shipping Weight: 44lbs

VIEW IN OUR STORE

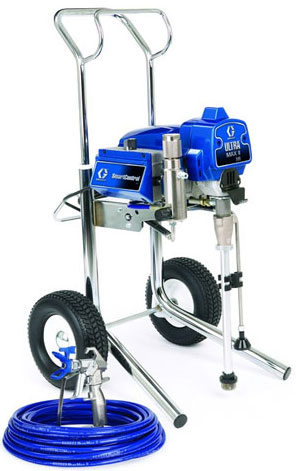

Graco Paint Sprayer | Ultra Max II 595 Electric Airless

Graco Paint Sprayer | Ultra Max II 595 Electric Airless

The Ultra Max II 595 is a workhorse. It's proven to be a hit with contractors who are looking for higher output and professional features, in a compact and portable sprayer.

Proven Endurance Pump
• Long-life V-Max Blue Packings, Chromex Rod, and Hardened Stainless Steel cylinder
• QuikAccess intake valve to easily clean or clear debris

SmartControl 2.0 Pressure Control
• Advanced microprocessor control delivers Graco's most consistent spray fan available at all spraying pressures
• Zero deadband at lower spraying pressures –ideally suited for fine finish spraying Exclusive Brushless DC Motor
• Compact, lightweight motor delivers higher horsepower per wall amp
• No brushes to replace
• Enclosed design protects internal motor components from dirt, dust, and overspray to extend motor lifeChrome Plated, Welded Steel Lo-Boy Cart
• Low profile, compact design transports easily in tight spaces
• Retractable handle allows sprayer to roll comfortably behind you
• Integrated hose wrap and pail hook for ultimate portability

Easy Out Pump Filter
• Filtering reduces tip clogs and ensuresa quality finish
• Easy Out design filters from the inside out –so filters won't get stuck or collapse when dirty
• Filter removes with the cap for less mess Swivel Inlet Suction Hose
• All aluminum construction is durable, lightweight, and rust-free
• No-tools removal of hose for cleaning or accessing inlet ball
• Easily swivels to reach buckets or cans
• Stands upright so it won't tip cans over

• Description: Ultra Max II 595 Hi-boy
• Part Number: 249919
• Max Tip Size: .027
• Max GPG: .70 (2.6)
• Max PSI: (Bar) 300 (227)

Comes complete with: New Contractor Gun, RAC X 517 Tip and Guard, 1/4 in x 50 ft (6.4 mm x 15 m) BlueMax II Hose.

VIEW IN OUR STORE

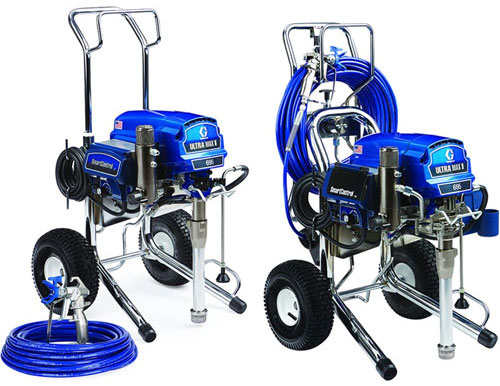

Graco Ultra Max II 695 Electric Airless Sprayer

Graco Ultra Max II 695 Electric Airless Sprayer

The continuing evolution of Ultra Max performance, reliability, technology, and quality. Ultra Max is the first name in high performance airless sprayers. We've done the impossible and built in even more performance, better user features, longer life, and increased efficiency. All this creates a remarkable evolution in Ultra Max quality. The NEW Ultra Max II – it just keeps getting better!

Features and Benefits:
• Proven Endurance piston pump delivers long life and reliable performance
• NEW DC motor is twice as powerful while drawing fewer amps
• NEW SmartControl precisely monitors and controls spraying pressure
• NEW upgraded Digital Display counts gallons, displays pressure, runs the Auto Flush timer, and activates the WatchDog Pump Protection System
• NEW AutoClean2 reverse flushes the sprayer and shuts off automatically

The Ultra Max II 695 is the industry standard for professional contractors who spray a full range of coatings on residential, commercial and industrial jobs. The Ultra Max II 695 handles the most common tip sizes, longer hose lengths and heavier coatings with ease.

Proven Endurance Pump
• Larger fluid passages handle heavier coatings with ease
• Long-life V-Max Blue Packings, Chromex Rod, and Hardened Stainless Steel cylinder
• QuikAccess intake valve to easily clean or clear debris
• Hand removable inlet tube

SmartControl 2.0
Pressure Control

• Advanced microprocessor control delivers Graco's most consistent spray fan at all spraying pressures
• Zero deadband at lower spraying pressures makes the 695 ideal for fine finish spraying
• WatchDog™ system automatically shuts off sprayer when bucket is empty to prevent damage

Exclusive Brushless DC Motor
• Compact, lightweight motor delivers higher horsepower per wall amp
• No brushes to replace
• Enclosed design protects internal motor components from dirt, dust and overspray to extend motor life

Exclusive Brushless DC Motor
• Retractable handle system doubles as a hose wrap
• TiltBack cart design
• Lift handles offer convenient grab points
• Welded steel power cord wrap
• Tubed pneumatic wheels roll easily on all surfaces

Easy Out Pump Filter
• Filtering reduces tip clogs and ensures a quality finish
• Easy Out design filters from the inside out so filters won't get stuck or collapse when dirty
• Filter removes with the cap for less mess

Comes complete with: New Contractor Gun, RAC X 517 Tip and Guard, 1/4 in x 50 ft (6.4 mm x 15 m) BlueMax II Hose.

VIEW IN OUR STORE

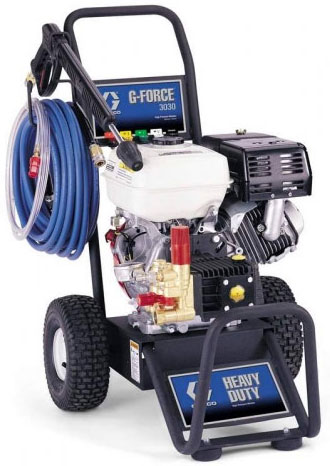

Graco Pressure Washer | G-Force 3030

Graco Pressure Washer | G-Force 3030

The quality is in the design.

G-Force 3030 pressure washers are built to handle the most extreme conditions with unmatched cleaning power for years of service.

FEATURES:
• Compact design makes transport and storage easy
• 270 cc Honda OHV engine provides performance levels contractors expect from Graco
• Powder-coated steel frame is durable to handle tough contractor work environments
• Built-in tip holder stores all 5 color-coded tips in convenient location
• Easy to clean built-in water filter eliminates debris passing through the pump

APPLICATIONS:
• Commercial Exteriors
• Residential Exteriors
• Fences & Decks
• Concrete & Bridges
• Water Towers

INCLUDES:
• 50 ft (15 m) non-marking, high-pressure Hose
• Gun & Wand
• 5 Spray Tips (0° Red, 15° Yellow, 25° Green, 40° White, Black Chemical Injector)
• 8 ft (2.4 m) Chemical Tube

SPECS:
• Operating Pressure: 3000 psi (206 bar, 20.6 MPa)
• Flow Rate: 3.0 gpm (11.0 lpm)
• Engine: 270 cc Honda OHV
• Weight: 135 lbs (61 kg)

VIEW IN OUR STORE
